SOAR Playbooks

Build automated response playbooks triggered by alert conditions. 12 action types including isolate, block IP, notify, and create ticket.

Route: /soar-playbooks

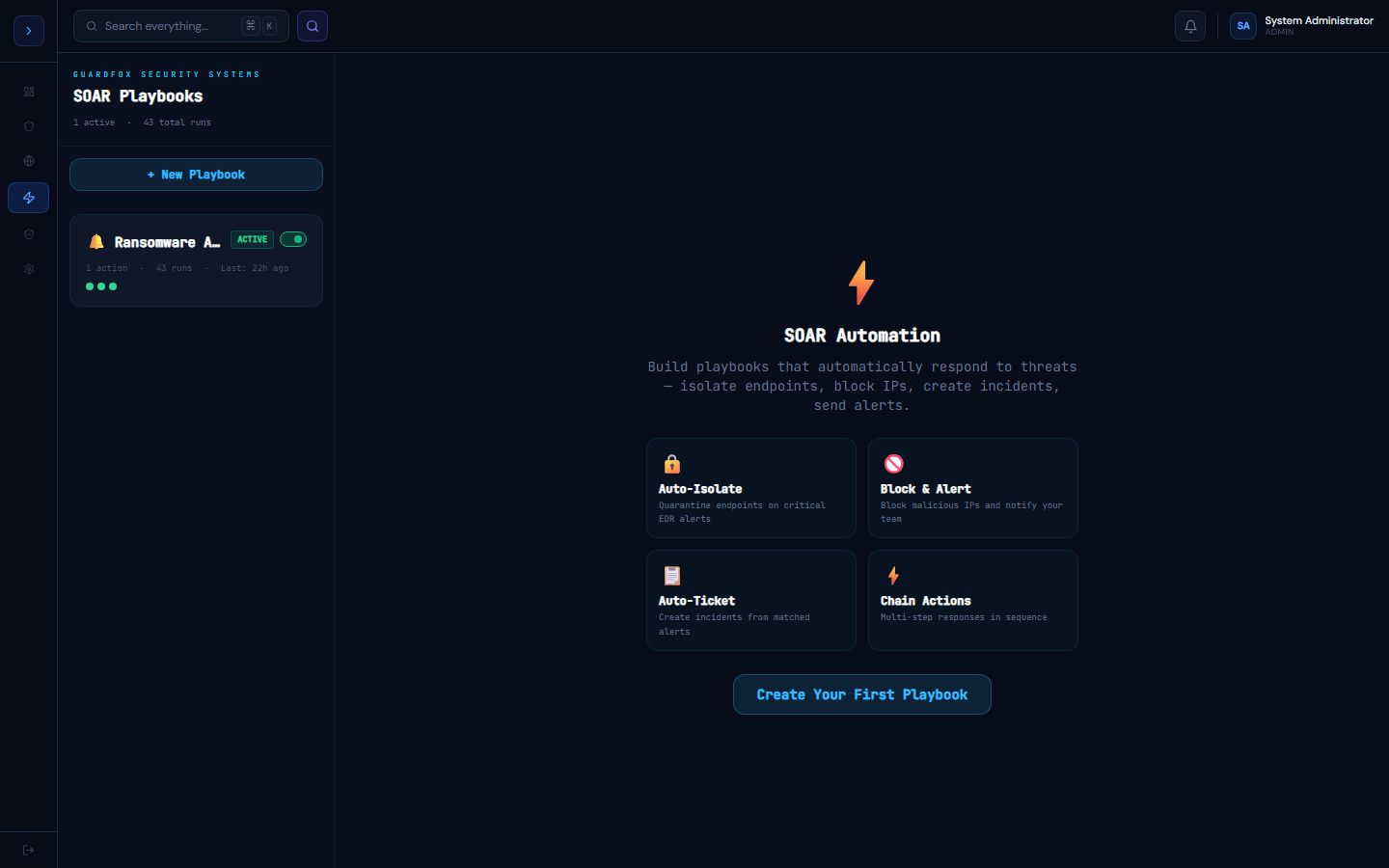

soar screenshot

How playbooks work

Overview

How SOAR Playbooks Work

A playbook is a sequence of automated actions that fires when a trigger condition is met.

Trigger types:

  • Alert severity reaches a threshold (e.g., any Critical alert)
  • Alert source matches (e.g., alerts from CrowdStrike only)
  • MITRE technique detected (e.g., T1486 - Ransomware)
  • IOC matched in watchlist

Execution:

  1. Trigger fires when a matching alert arrives
  2. Actions execute sequentially (or in parallel if configured)
  3. Each action logs its result to the playbook run history
  4. Failures do not stop subsequent actions unless configured to do so

Traceability — "Triggered by"

Every entry in the Run History tab shows what actually triggered it, not just when it ran. A run started by a real alert shows Triggered by: Alert →, linking straight to that alert's detail view; a run started with the Run Now button shows Manually triggered with no link. This makes it possible to audit exactly why an automated action fired — useful when reviewing whether a playbook is over-triggering or investigating an incident after the fact.

Available action types

Isolate Endpoint · Release Endpoint · Kill Process · Block IP Address · Run Nmap Scan · Create Incident · Tag Alert · Update Alert Status · Send Slack Message · Send Email · Create Jira Issue · Create ServiceNow Incident · Trigger PagerDuty · Microsoft Teams · Trigger Opsgenie · Discord Message · Call Webhook · Wait / Delay

Building a playbook

How to use

Building a Playbook

  1. Go to Automation → SOAR Playbooks
  2. Click New Playbook
  3. Give it a name (e.g., "Ransomware Response")
  4. Configure the trigger:

- Severity: Critical

- Source: Any

- MITRE technique: T1486 (optional)

  1. Add actions using the + Add Action button
  2. Drag to reorder actions
  3. Toggle Enabled to activate
  4. Click Save

Example: Ransomware Response Playbook

Trigger: Severity = Critical AND technique = T1486

Actions:
1. Isolate Endpoint (endpoint from alert)
2. Kill Process (process from alert)
3. Block IP Address (src IP from alert)
4. Create Incident (severity = Critical)
5. Send Slack Message (#soc-critical)
6. Send Email (CISO)

Testing a playbook

Click Run Test to fire the playbook with a dummy alert payload. Check the Run History tab to confirm each action succeeded.
